驗菌&螢光兩用儀 組裝

 驗菌&螢光兩用儀 組裝

    一機兩用的儀器，快來了解如何組裝吧！

所需材料：

    最小系統電路板：STM32F103C8T6 Blue Pill板
    麵包板電源：3.3V 5V 12V多路输出
    光源：LED • 600nm-Orange、UV-LED 365nm
    光偵測器：型號 TSL-2561傳感器
    光源選擇指示燈：3色LED模組-RGB
    數值顯示器：0.96寸 藍色IIC通信小OLED顯示屏模塊

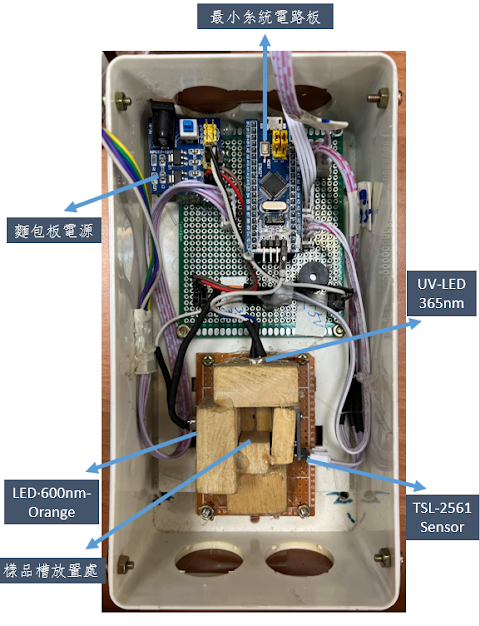

下層

上層

---------------------------------------------------------------------

操作

1.首先插上電源即開機，按1選擇所需光源(600nm-驗菌，365nm-螢光計)

2.將Cuvette置於樣品放置處，即開始量測。

  第一行之L值為未換算前的穿透係數。

  按下2可記錄空白組數值(螢幕顯示L0)，按3可記錄待測物數值(螢幕顯示L1)

  完成量測後，連續按4兩下可直接計算獲得待測物之透光率(T)與吸收值(A)

---------------------------------------------------------------------

程式碼如下

//from -2-

//ok but btn slow

//-4- change btn

//from colormeter-tsl2561-oled-stm-4

//orange led 600-605nm,uv 365nm

#include <SoftWire.h>

//#define SDA PB11 //I2C 2//#define SCL PB10 //I2 2

#define SDA PB11//PB11  //PB7//I2C 1//

#define SCL PB10//PB10 //PB6 I2C 1

//SoftWire SWire(PB6, PB7, SOFT_FAST);

//SoftWire SWire(SCL, SDA, SOFT_STANDARD);//too slow affect btn

SoftWire SWire(SCL, SDA, SOFT_FAST);

#include "TSL2561_STM.h"

// the ADDR pin float (addr 0x39), or tie it to ground or vcc. In those cases

// use TSL2561_ADDR_LOW (0x29) or TSL2561_STM_ADDR_HIGH (0x49) respectively

//TSL2561 tsl(TSL2561_ADDR_FLOAT);

TSL2561_STM tsl(TSL2561_STM_ADDR_FLOAT);

#include <Adafruit_GFX.h>

#include <Adafruit_SSD1306Soft.h>

#define OLED_RESET 4

Adafruit_SSD1306Soft display(OLED_RESET);

#define SSD1306_WHITE WHITE

#define SCREEN_ADDRESS 0x3C

int rgbR = PA2;int rgbG = PA1;int rgbB = PA0;

int rgbRShow = PA5;int rgbGShow = PA4;int rgbBShow = PA3;

int beep = PC14;//11;

float pressLength_milliSeconds1 = 0;float pressLength_milliSeconds2 = 0;

float pressLength_milliSeconds3 = 0;float pressLength_milliSeconds4 = 0;

int short_milliSeconds1 = 4950;int short_milliSeconds2 = 4950;

int short_milliSeconds3 = 4950;int short_milliSeconds4 = 4950;

int long_milliSeconds1 = 5000; int long_milliSeconds2 = 5000;

int long_milliSeconds3 = 5000; int long_milliSeconds4 = 5000;

int btn1 = PB3;int btn2 = PA15;//uv led400 and ok led

int btn3 = PB5;int btn4 = PB4; //

int btn1Presses = 0;int btn2Presses = 0;

int btn3Presses = 0;int btn4Presses = 0;

uint16_t x;

float Lfirst; float Llast; float LAsorb;;float LT;

void baseScreenShow(){

  display.clearDisplay();

  display.setTextSize(1);display.setTextColor(SSD1306_WHITE);

  display.setCursor(5, 0);display.println(F("Toppy!"));//display.display();

  display.setTextSize(2);display.setTextColor(SSD1306_WHITE);

  display.setCursor(46, 0);display.println(F("L:"));

  display.setCursor(0, 16);display.println(F("L0:"));

  display.setTextSize(2);display.setTextColor(SSD1306_WHITE);

  display.setCursor(0, 33);display.println(F("L1:"));

  display.setTextSize(2);display.setTextColor(SSD1306_WHITE);

  //display.setCursor(0, 50);display.println(F("A :"));



  display.setCursor(62, 0);display.println(x);

  if(btn4Presses == 1){

     display.setCursor(0, 50);display.println(F("T :"));

  }else{

     display.setCursor(0, 50);display.println(F("A :"));

  }

}

void runShow(){

  display.setTextSize(2);display.setTextColor(SSD1306_WHITE);

  //display.setCursor(10, 0);display.println(F("E:"));//display.display();

  display.setTextSize(2);display.setTextColor(SSD1306_WHITE);

  display.setCursor(36, 16);display.println(Lfirst);

  display.setTextSize(2);display.setTextColor(SSD1306_WHITE);

  display.setCursor(40, 33);display.println(Llast);

  display.setTextSize(2);display.setTextColor(SSD1306_WHITE);

  //display.setCursor(40, 50);display.println(LAsorb);

  if(btn4Presses == 1){

     display.setCursor(40, 50);display.println(LT);

  }else{

     display.setCursor(40, 50);display.println(LAsorb);

  }

}

void beepS(){  //short

             digitalWrite(beep, HIGH);delay(20);

             digitalWrite(beep ,LOW);

           }

void beepL(){  //long

             digitalWrite(beep, HIGH);delay(100);

             digitalWrite(beep ,LOW); delay(100);

             digitalWrite(beep ,HIGH);delay(100);

             digitalWrite(beep ,LOW); delay(100);

             digitalWrite(beep ,HIGH);delay(100);

             digitalWrite(beep ,LOW); delay(100);

             digitalWrite(beep ,HIGH);delay(100);

             digitalWrite(beep ,LOW); delay(50);

            }

void RedRGB(){

  digitalWrite(rgbR,HIGH);

  digitalWrite(rgbG,LOW);

  digitalWrite(rgbB,LOW);

  digitalWrite(rgbRShow,HIGH);

  digitalWrite(rgbGShow,LOW);

  digitalWrite(rgbBShow,LOW);

}

void GreenRGB(){

 digitalWrite(rgbR,LOW);

  digitalWrite(rgbG,HIGH);

  digitalWrite(rgbB,LOW);

  digitalWrite(rgbRShow,LOW);

  digitalWrite(rgbGShow,HIGH);

  digitalWrite(rgbBShow,LOW);

}

void BlueRGB(){

  digitalWrite(rgbR,LOW);

  digitalWrite(rgbG,LOW);

  digitalWrite(rgbB,HIGH);

  digitalWrite(rgbRShow,LOW);

  digitalWrite(rgbGShow,LOW);

  digitalWrite(rgbBShow,HIGH);

}

void setup(void) {

  pinMode(btn1, INPUT_PULLUP);  pinMode(btn2, INPUT_PULLUP);

  pinMode(btn3, INPUT_PULLUP);  pinMode(btn4, INPUT_PULLUP);

  pinMode(rgbR,OUTPUT); pinMode(rgbG,OUTPUT); pinMode(rgbB,OUTPUT);

  pinMode(rgbRShow,OUTPUT); pinMode(rgbGShow,OUTPUT); pinMode(rgbBShow,OUTPUT);

  pinMode(beep,OUTPUT);

  Serial.begin(9600);

  if (tsl.begin()) {

    Serial.println("Found sensor");

  } else {

    Serial.println("No sensor?");

    //while (1);

  }

  // You can change the gain on the fly, to adapt to brighter/dimmer light situations

  //tsl.setGain(TSL2561_STM_GAIN_0X);         // set no gain (for bright situtations)

  tsl.setGain(TSL2561_STM_GAIN_16X);      // set 16x gain (for dim situations)

  // Changing the integration time gives you a longer time over which to sense light

  // longer timelines are slower, but are good in very low light situtations!

  //tsl.setTiming(TSL2561_STM_INTEGRATIONTIME_13MS);  // shortest integration time (bright light)

  //tsl.setTiming(TSL2561_INTEGRATIONTIME_101MS);  // medium integration time (medium light)

  tsl.setTiming(TSL2561_STM_INTEGRATIONTIME_402MS);  // longest integration time (dim light)

  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);  // initialize with the I2C addr 0x3D (for the 128x64)

  display.clearDisplay();

  baseScreenShow();

  display.display();

  RedRGB();

 }

void loop(void) {

  while (digitalRead(btn1) == LOW ){

    delay(10);

    pressLength_milliSeconds1 = pressLength_milliSeconds1 + 100;

    //Serial.print("ms = ");    //display how long button is has been held

    //Serial.println(pressLength_milliSeconds);

  }

  if (pressLength_milliSeconds1 >= long_milliSeconds1){//long press

    beepL();

    digitalWrite(rgbR, LOW);

    digitalWrite(rgbG, LOW);

    digitalWrite(rgbB, LOW);

    digitalWrite(rgbR, HIGH); //red

    delay(200);

    digitalWrite(rgbR, LOW);

    delay(200);

    digitalWrite(rgbR, HIGH); //red

    delay(200);

    digitalWrite(rgbR, LOW);

    delay(200);

    digitalWrite(rgbR, HIGH); //red

    delay(200);

    digitalWrite(rgbR, LOW);

    delay(200);

  }  //option 1 - Execute the first option if the button is held for the correct amount of time

    else if(pressLength_milliSeconds1 < short_milliSeconds1

            && pressLength_milliSeconds1 >= 100    ){

            //digitalWrite(rgbG, HIGH); //green

            //digitalWrite(rgbR, LOW);

            beepS();

            btn1Presses++;

            switch(btn1Presses){

              case 1:

              GreenRGB();

              break;

              case 2:

              BlueRGB();

              break;

              case 3:

              RedRGB();

              btn1Presses = 0;

              break;

            }

   }

   pressLength_milliSeconds1 = 0;

  while (digitalRead(btn2) == LOW ){

    delay(10);

    pressLength_milliSeconds2 = pressLength_milliSeconds2 + 100;

  }

  if (pressLength_milliSeconds2 >= long_milliSeconds2){

    beepL();

  }  //option 1 - Execute the first option if the button is held for the correct amount of time

    else if(pressLength_milliSeconds2 < short_milliSeconds2

            && pressLength_milliSeconds2 >= 100    ){

            beepS();

            Lfirst = x;

            }

   pressLength_milliSeconds2 = 0;

  while (digitalRead(btn3) == LOW ){

    delay(10);

    pressLength_milliSeconds3 = pressLength_milliSeconds3 + 100;

  }

  if (pressLength_milliSeconds3 >= long_milliSeconds3){

    beepL();

  }  //option 1 - Execute the first option if the button is held for the correct amount of time

    else if(pressLength_milliSeconds3 < short_milliSeconds3

            && pressLength_milliSeconds3 >= 100    ){

            beepS();

            Llast = x;

            }

   pressLength_milliSeconds3 = 0;

  while (digitalRead(btn4) == LOW ){

    delay(10);

    pressLength_milliSeconds4 = pressLength_milliSeconds4 + 100;

  }

  if (pressLength_milliSeconds4 >= long_milliSeconds4){

    beepL();

  }  //option 1 - Execute the first option if the button is held for the correct amount of time

    else if(pressLength_milliSeconds4 < short_milliSeconds4

            && pressLength_milliSeconds4 >= 100    ){

            beepS();

            btn4Presses++;

            switch(btn4Presses){

            case 1://A

              LAsorb = log10(((float)Lfirst) / Llast);

            break;

            case 2://T

              LT = Llast/Lfirst *100;

              btn4Presses = 0;

            break;

           }

         }

   pressLength_milliSeconds4 = 0;

/**/

  //uint16_t x = tsl.getLuminosity(TSL2561_VISIBLE);

   x = tsl.getLuminosity(TSL2561_STM_FULLSPECTRUM);

  //uint16_t x = tsl.getLuminosity(TSL2561_INFRARED);

  //Serial.println(x, DEC);

/*

  // More advanced data read example. Read 32 bits with top 16 bits IR, bottom 16 bits full spectrum

  uint32_t lum = tsl.getFullLuminosity();

  uint16_t ir, full;

  ir = lum >> 16;

  full = lum & 0xFFFF;

  Serial.print("IR: "); Serial.print(ir);   Serial.print("\t\t");

  Serial.print("Full: "); Serial.print(full);   Serial.print("\t");

  Serial.print("Visible: "); Serial.print(full - ir);   Serial.print("\t");



  Serial.print("Lux: "); Serial.println(tsl.calculateLux(full, ir));

*/

  baseScreenShow();

  runShow();

  display.display();

  delay(2);

}
